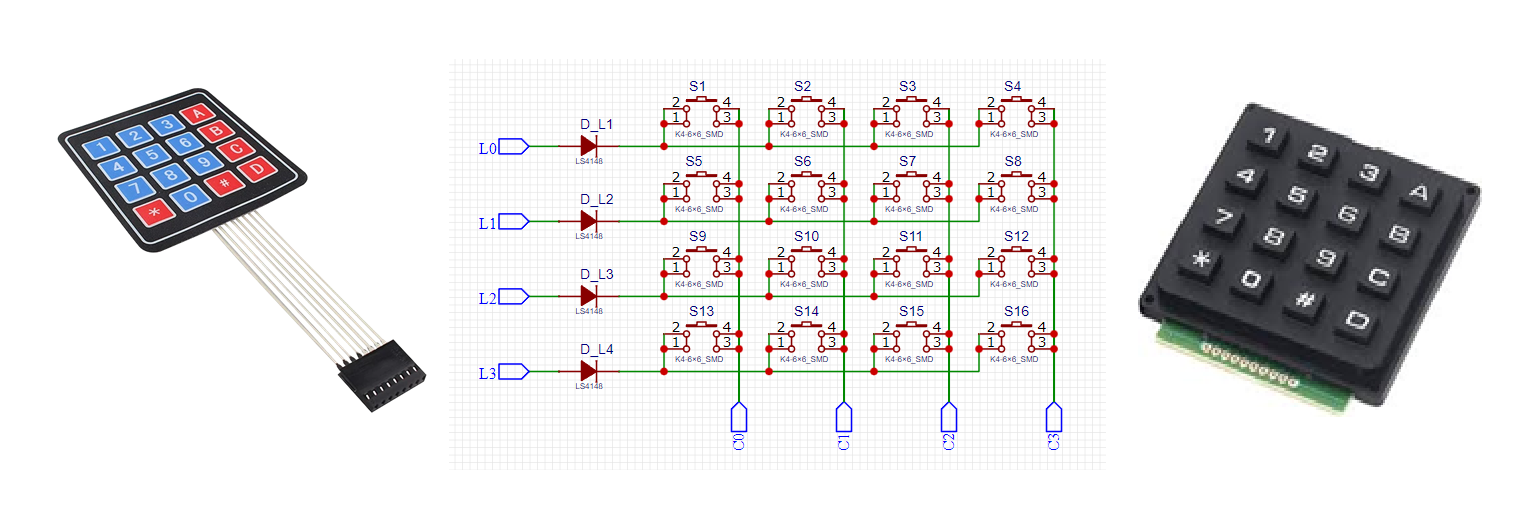

Teclado Matricial 4x4
main.c
#define F_CPU 16000000L
#include <util/delay.h>
#include "lcd.h"
#include "teclado.h"
void main(void)
{
char tecla;
char str[17] = "Tecla: ";
lcd_init();
teclado_init();
while( 1 )
{
tecla = teclado_scan();
str[7] = tecla;
lcd(0,0,str);
}
}
bits.h
#ifndef BITS_H
#define BITS_H
#define BIT(reg,bit) (reg & (1<<bit))
#define SETBIT(reg,bit) reg |= (1<<bit)
#define CLRBIT(reg,bit) reg &= ~(1<<bit)
#endif
teclado.h
#ifndef TECLADO_H
#define TECLADO_H
void teclado_init( void );
unsigned char teclado_scan( void );
#endif
teclado.c
#include <avr/io.h>
#include "bits.h"
/* -------------------------------------------------

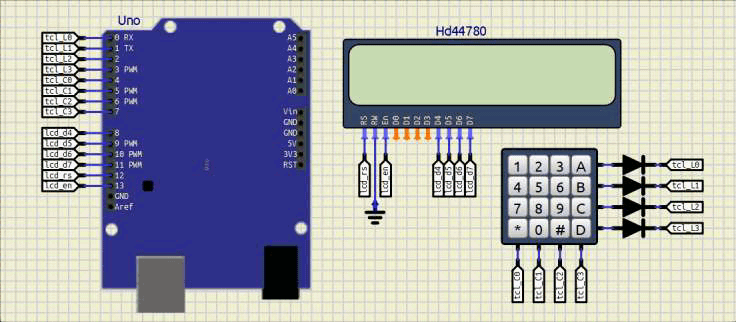

* MAPA DE ENTRADAS E SAIDAS
* -------------------------------------------------
* PORT |Pino |Conexão
* ---------|-------|-------------------------------
* PB0 | 0 | Teclado Saída L0
* PB1 | 1 | Teclado Saída L1
* PB2 | 2 | Teclado Saída L2
* PB3 | 3 | Teclado Saída L3
* PB4 | 4 | Teclado Entrada C0
* PB5 | 5 | Teclado Entrada C1
* PB6 | 6 | Teclado Entrada C2
* PB7 | 7 | Teclado Entrada C3
* -------------------------------------------------
*/
#define NUM_COL 4
#define NUM_LIN 4
#define L0_MASK 0x01
#define C0_MASK 0x10
void teclado_init( void )
{
DDRD = 0x0F; // L_Mask
PORTD = 0xFF;
}
const char tecladoMatriz[4][4] = { {'1','2','3','A'},
{'4','5','6','B'},
{'7','8','9','C'},
{'*','0','#','D'} };
unsigned char teclado_scan( void )
{
unsigned char aux = 0;
unsigned int l,c;
for( l=0; l<NUM_LIN; l++ )
{
PORTD = ~(L0_MASK << l);
for( c=0; c<NUM_COL; c++ )
{
if( (~PIND) & (C0_MASK<<c) )
{
aux = tecladoMatriz[l][c];
}
}
}
return( aux );
}
lcd.h
#ifndef LCD_H
#define LCD_H
void lcd_init( void );
void lcd_clr( void );
void lcd( unsigned char lin, unsigned char col, const char * str );
void lcd_num( unsigned char lin, unsigned char col,
int num, unsigned char tam );
#endif
lcd.c
#define F_CPU 16000000L
#include <util/delay.h>
#include <avr/io.h>
#include "bits.h"
/* -------------------------------------------------
* MAPA DE ENTRADAS E SAIDAS
* -------------------------------------------------
* PORT | Pino |Conexão
* ---------|-------|-------------------------------
* PB0 | 8 | LCD_D4
* PB1 | 9 | LCD_D5
* PB2 | 10 | LCD_D6
* PB3 | 11 | LCD_D7
* PB4 | 12 | LCD_RS
* PB5 | 13 | LCD_EN
* -------------------------------------------------
*/
//***************** Interface com PORTs/Pinos
#define LCD_ROWS 2
#define LCD_COLS 16
#define LCD_BUS(bus) PORTB = ((PORTB & 0xF0) | ((bus) & 0x0F))
#define LCD_RS(bit) (bit) ? (SETBIT(PORTB,4)) : (CLRBIT(PORTB,4))
#define LCD_EN(bit) (bit) ? (SETBIT(PORTB,5)) : (CLRBIT(PORTB,5))
//***************** Definicao de Comandos ao LCD
#define LCD_CLEAR_DISPLAY 0x01
#define LCD_RETURN_HOME 0x02
#define LCD_ENTRY_MODE_SET 0x04
#define LCD_EMS_CURSOR_RIGHT 0x02
#define LCD_EMS_CURSOR_LEFT 0x00
#define LCD_EMS_SHIFT_DISPLAY 0x01
#define LCD_DISPLAY_CONTROL 0x08
#define LCD_DC_DISPLAY_ON 0x04
#define LCD_DC_DISPLAY_OFF 0x00
#define LCD_DC_CURSOR_ON 0x02
#define LCD_DC_CURSOR_OFF 0x00
#define LCD_DC_BLINK_ON 0x01
#define LCD_DC_BLINK_OFF 0x00
#define LCD_CURSOR_SHIFT 0x10
#define LCD_CS_LEFT 0x00
#define LCD_CS_RIGHT 0x04
#define LCD_DISPLAY_SHIFT 0x10
#define LCD_DS_LEFT 0x08
#define LCD_DS_RIGHt 0x0C
#define LCD_FUNCTION_SET 0x20
#define LCD_FS_DATA_LENGTH_8 0x10
#define LCD_FS_DATA_LENGTH_4 0x00
#define LCD_FS_LINE_NUMBER_1 0x00
#define LCD_FS_LINE_NUMBER_2 0x08
#define LCD_FS_DOTS_FORMAT_5x8 0x00
#define LCD_FS_DOTS_FORMAT_5x11 0x04
#define LCD_SET_CGRAM_ADDRS( adrs ) (0x40+(adrs & 0x3F))
#define LCD_SET_DDRAM_ADDRS( adrs ) (0x80+(adrs & 0x7F))
#define LCD_ADDR_LINE_0 0x00
#define LCD_ADDR_LINE_1 0x40
// Escreve um comando no display (Instruction Register)
void lcd_instReg( unsigned char i )
{
LCD_RS(0);
LCD_BUS(i>>4);
LCD_EN(0);
if( i == LCD_CLEAR_DISPLAY || i == LCD_RETURN_HOME )
_delay_ms( 2 );
else
_delay_us( 40 );
LCD_EN(1);
if( (i & 0xF0) == (LCD_FUNCTION_SET | LCD_FS_DATA_LENGTH_4) )
{
LCD_BUS(i>>4);
LCD_EN(0);
_delay_us( 40 );
LCD_EN(1);
}
LCD_BUS(i);
LCD_EN(0);
if( i == LCD_CLEAR_DISPLAY || i == LCD_RETURN_HOME )
_delay_ms( 2 );
else
_delay_us( 40 );
LCD_EN(1);
}
// Escreve um dado no display (Data Register))
void lcd_dataReg( unsigned char d )
{
LCD_RS(1);
LCD_BUS(d >> 4);
LCD_EN(0);
_delay_us( 40 );
LCD_EN(1);
LCD_BUS(d);
LCD_EN(0);
_delay_us( 40 );
LCD_EN(1);
}
// Posicionar o cursor na coordenada: linha e coluna
void lcd_lincol( unsigned char lin, unsigned char col)
{
lcd_instReg( LCD_SET_DDRAM_ADDRS( ((LCD_ADDR_LINE_1 * lin) + (col + LCD_ADDR_LINE_0) ) ) );
}
// Inicializa os pinos conectados ao display
void lcd_init( void )
{
DDRB |= 0x3F;
PORTB &= ~0x3F;
LCD_EN(1);
lcd_instReg( LCD_FUNCTION_SET|LCD_FS_DATA_LENGTH_4|LCD_FS_LINE_NUMBER_2);
lcd_instReg( LCD_DISPLAY_CONTROL|LCD_DC_DISPLAY_ON|LCD_DC_CURSOR_OFF|LCD_DC_BLINK_OFF );
lcd_instReg( LCD_CLEAR_DISPLAY );
lcd_instReg( LCD_RETURN_HOME );
}
// Escreve uma string no display
void lcd( unsigned char lin, unsigned char col, const char * str )
{
char pos = col;
lcd_lincol( lin, col );
while( *str )
{
lcd_dataReg( *str );
++str;
++pos;
}
}
// Escreve um número inteiro no display
void lcd_num( unsigned char lin, unsigned char col,
int num, unsigned char tam )
{
int div;
unsigned char size;
char sinal; // 0:+ 1:-
sinal = (num < 0);
if( sinal )
num = (~num) + 1;
lcd_lincol(lin, col);
div=10000;
size = 5;
while( div > 1 )
{
if( num/div == 0 )
--size;
else
break;
div/=10;
}
while( tam > (size+sinal) && tam > 1 )
{
lcd_dataReg(' ');
--tam;
}
if( sinal )
lcd_dataReg('-');
do
{
lcd_dataReg( (num / div) + '0' );
num = num % div;
div/=10;
}
while( div >= 1 );
}
// Apaga todos os caracteres no display
void lcd_clr( void )
{
lcd_instReg(LCD_CLEAR_DISPLAY);
}
